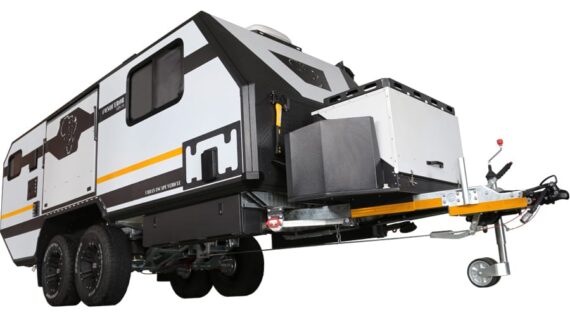

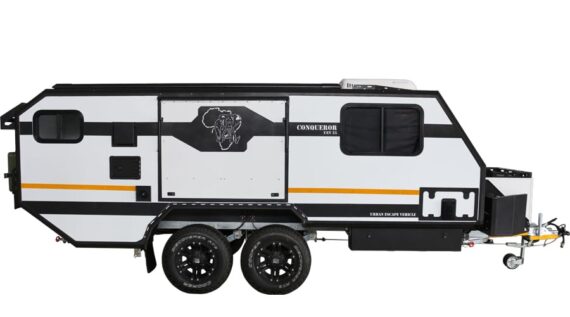

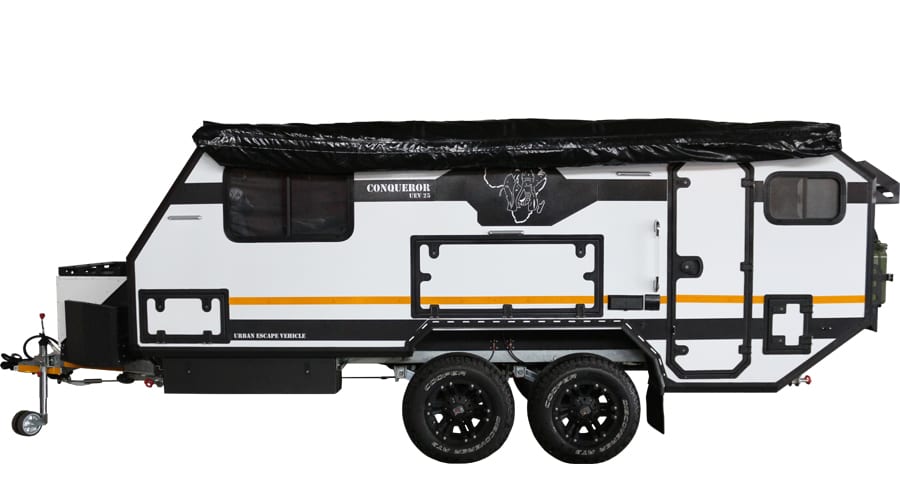

UEV-25
Luxury has a new name
Price From
R648 358
Off-Road caravanning just got a lot better. Focusing on luxury and comfort whilst retaining Conqueror’s rugged look and uncompromising performance the UEV-25 sets the standard.
The trend setting UEV-25 features an all new suspension, and body construction which comprises of durable composite materials borrowed from the aeronautical industry that provides excellent insolation and weight benefits. The industry first and patented side bed design allows for the UEV-25 to be set up in just a few minutes.
SUSPENSION & CHASSIS
- Independent D-Arm with Coil & Double Shock Absorbers (8 shocks & 4 D-Arms).
- The overall performance of a fully independent suspension is far more superior than that of a solid beam or torsion type suspension. The suspension provides improved articulation over obstacles, increased ride heights, softer ride quality on both tar and corrugated roads and an uncompromised towing experience.
- 16” Rims or optional alloy upgrade with 285/75/R16 tyres.
- Adjustable wheel alignment.
- Auto reverse coupler with run in braking system.
- Hot dipped galvanised Boxed A-Frame and Chassis.
- Corner Stabilizer Jacks.
BODY CONSTRUCTION
- The Conqueror UEV Range of Campers are manufactured using a lightweight aluminium frame and Ultra-Light Reinforced Composite Panels.
- Aluminium frames and components are epoxy coated which provides a durable finish and is more resistant to scratches, chipping, wear and fade.
- Structural components are designed and manufactured for maximum strength with minimal weight.

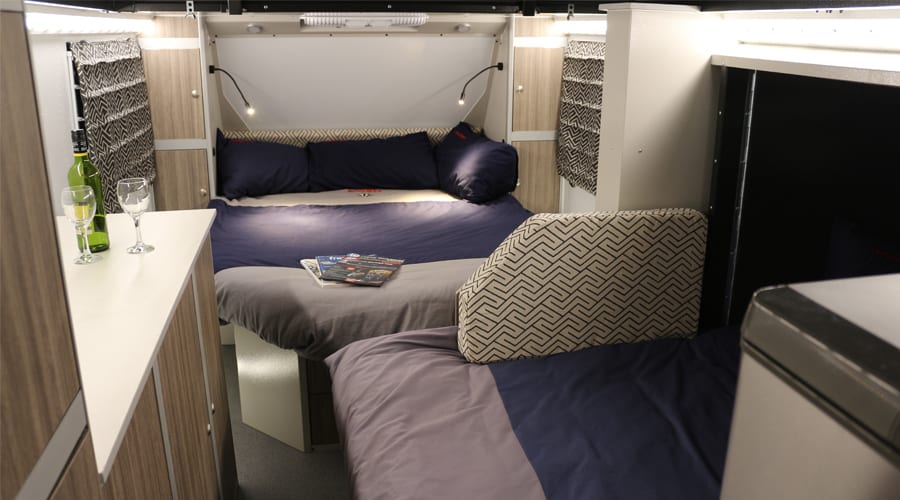

INTERIOR LAYOUT & STORAGE

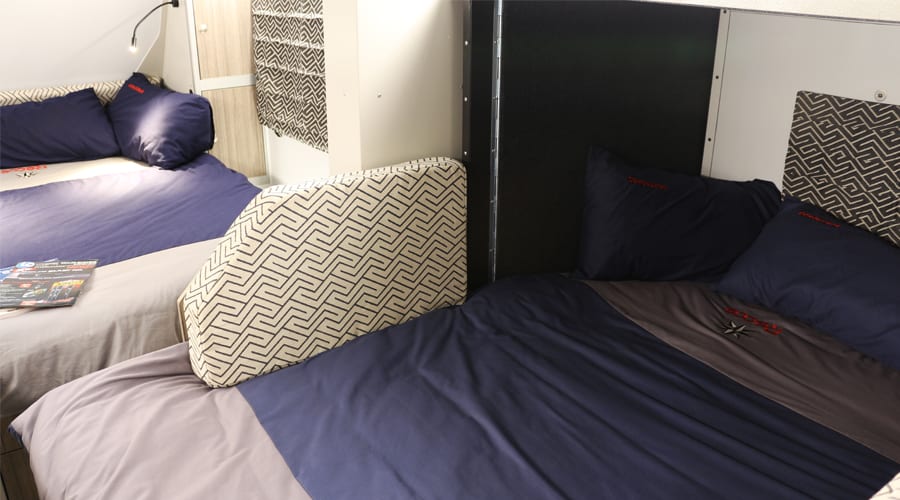

- Front Island Double Bed.

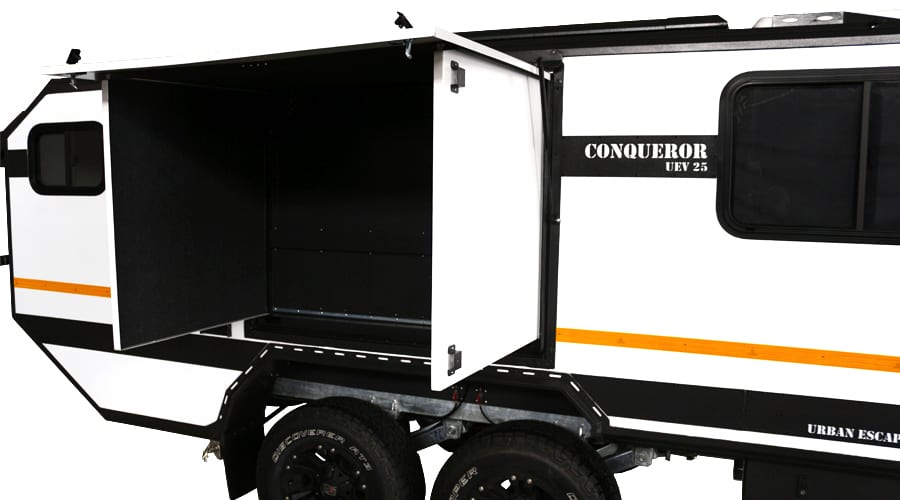

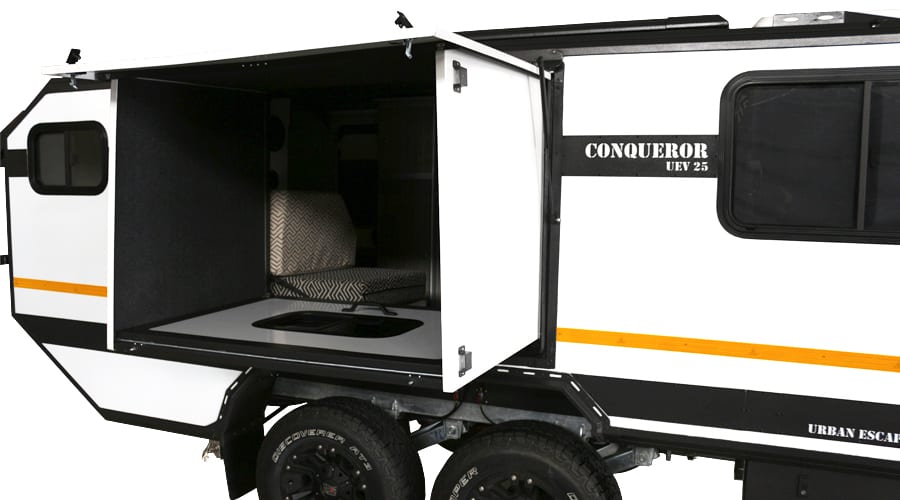

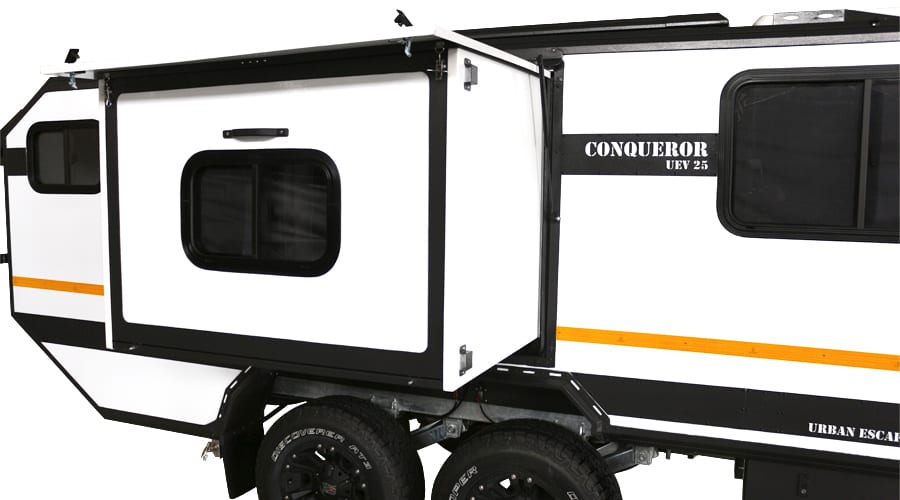

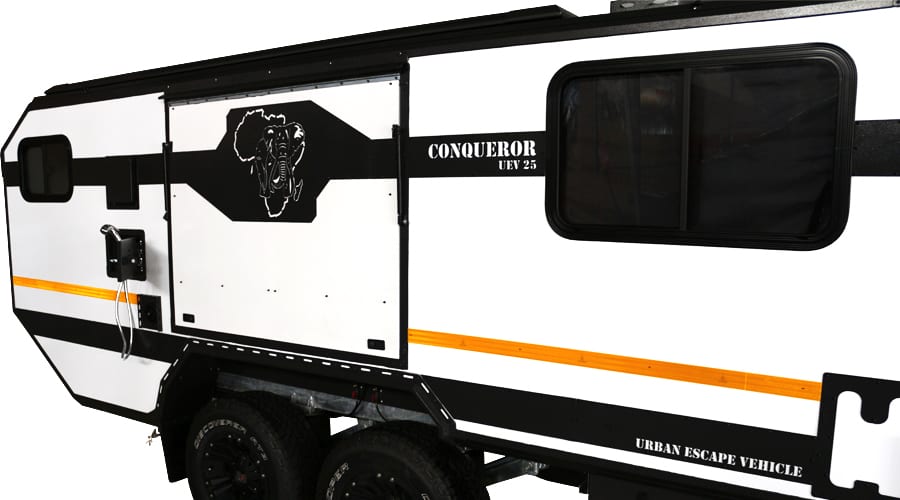

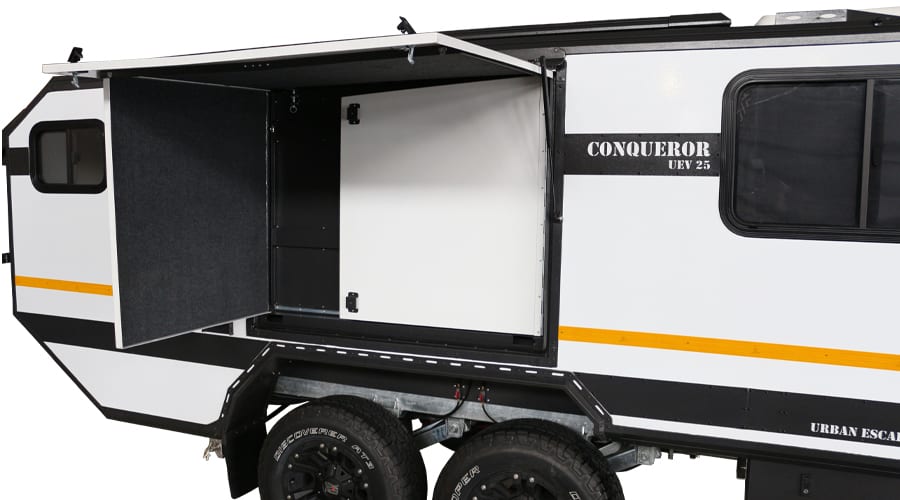

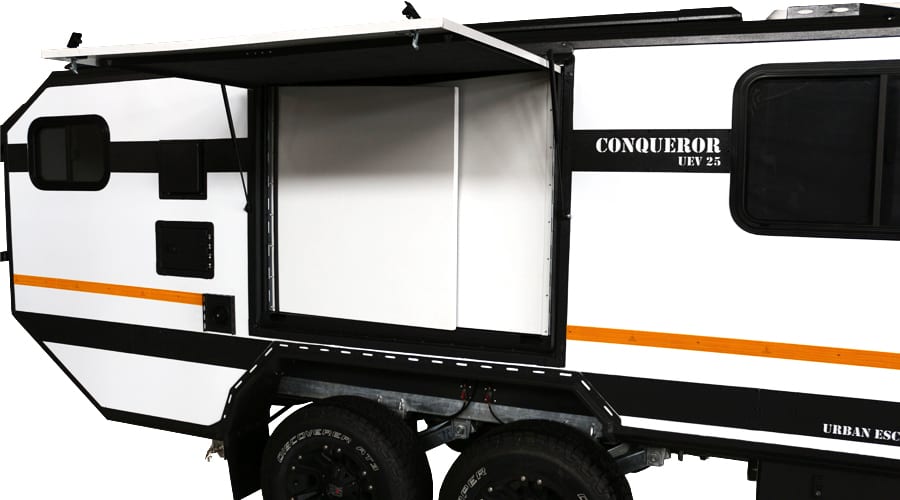

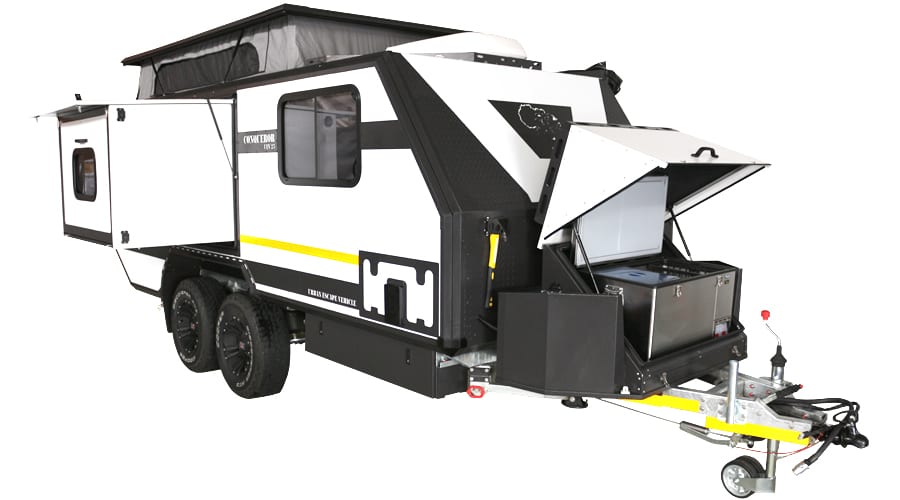

- Side Foldout Double Bed.

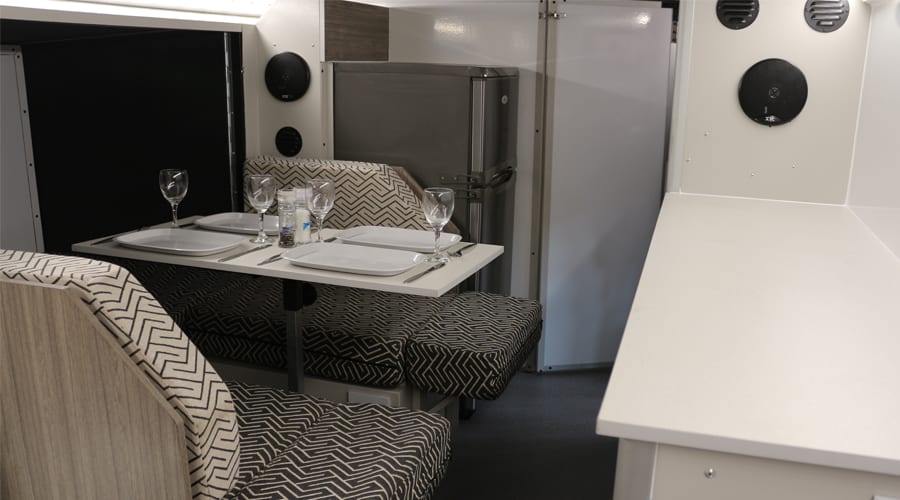

- Side foldout bed configurable as a dinette area.
- Interior storage cupboards.

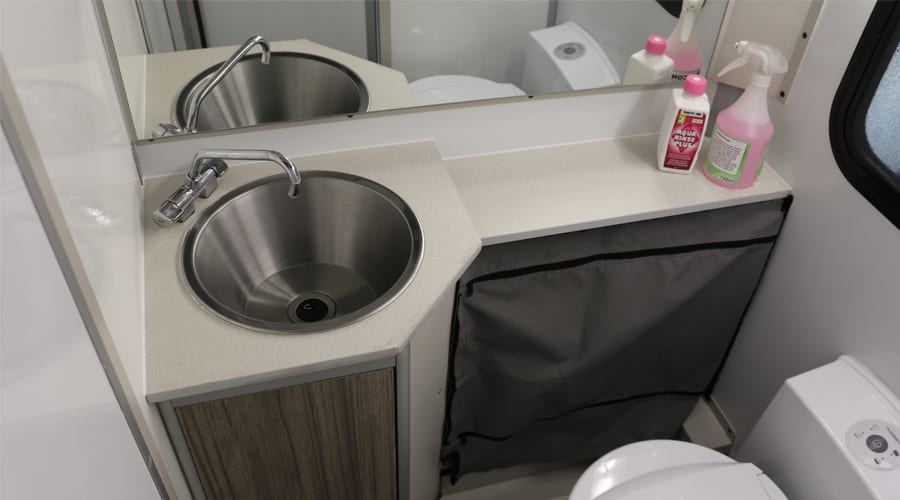

- Internal Bathroom. (Shower & Toilet)
- Upright 12V Fridge/Freezer (internal).
- Dimmable Interior LED lights.
- Optional low current yet powerful interior fans.
- Optional Media Centre.
EXTERIOR LAYOUT & STORAGE

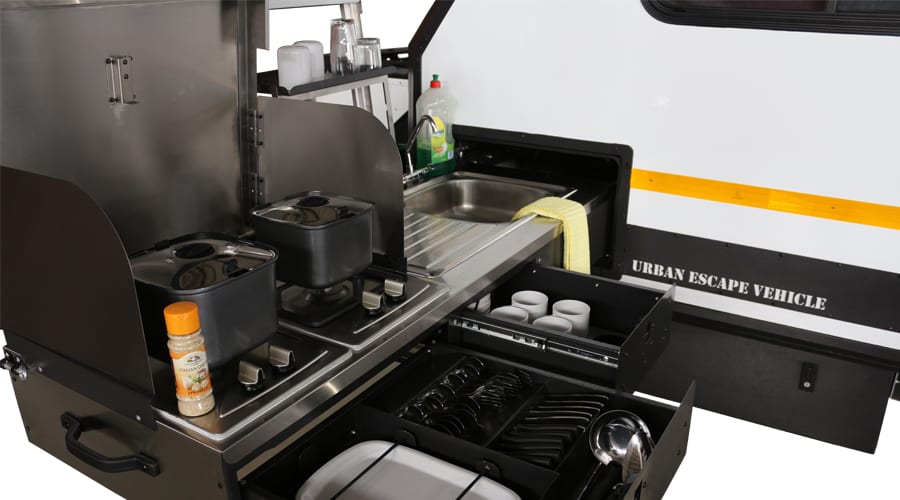

KITCHEN:
- Conveniently laid-out retractable kitchen drawer.
- Dedicated Cutlery & Crockery storage.
- Two plate gas burners.

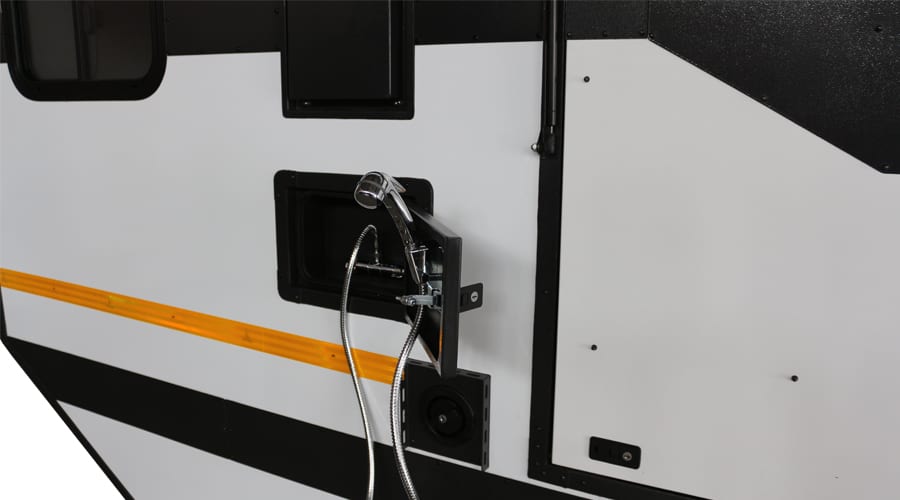

- Hot and cold-water wash-up facility.

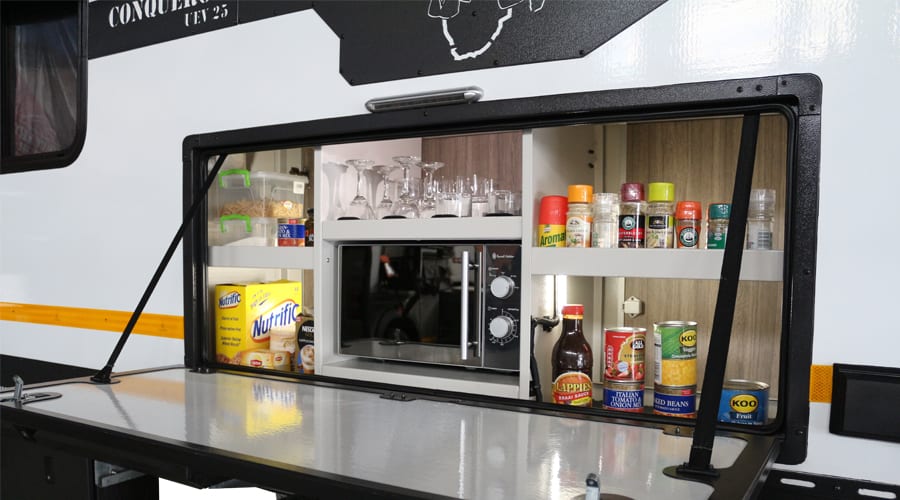

- External Pantry accessible from inside.

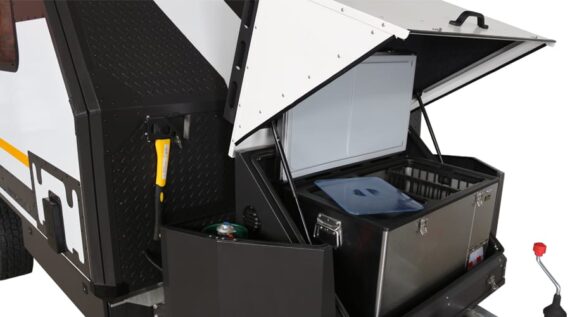

- Fridge/Freezer storage in nosecone.
PLUMBING:
- Low centre of gravity 290 litre water tanks.
- Auto shut-off water pump.
- Hot water geyser.
- Integrated plumping for Kitchen and Bathroom.
EXTERNAL STORAGE:
- Two Jerry Can holders.
- Rear storage rack.
- Dedicated gas bottle storage.
- Nosecone with dedicated axe and spade mountings.
ELECTRICAL
- Two deep cycle batteries.
- 12V Anderson plug for DC charging from vehicle or solar panels.

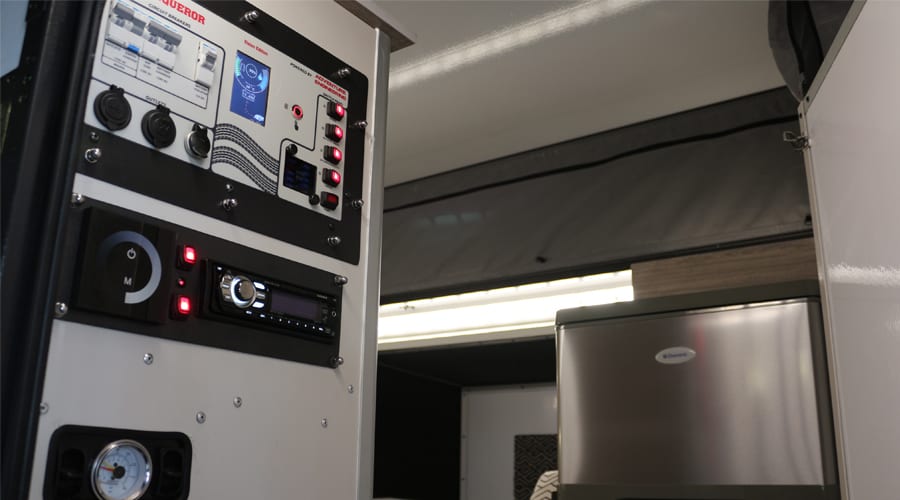

- 24A/14.7V (max) intelligent charger integrated into an easy to use power control panel with infographic display.
- External LED lights.
- Interior dimmable LED lights.
- LED Taillights.
- External Hella Plugs.
- Dust Limiting cabin pressure fan.
AWNINGS

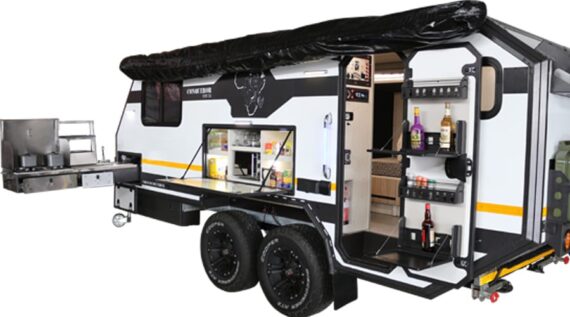

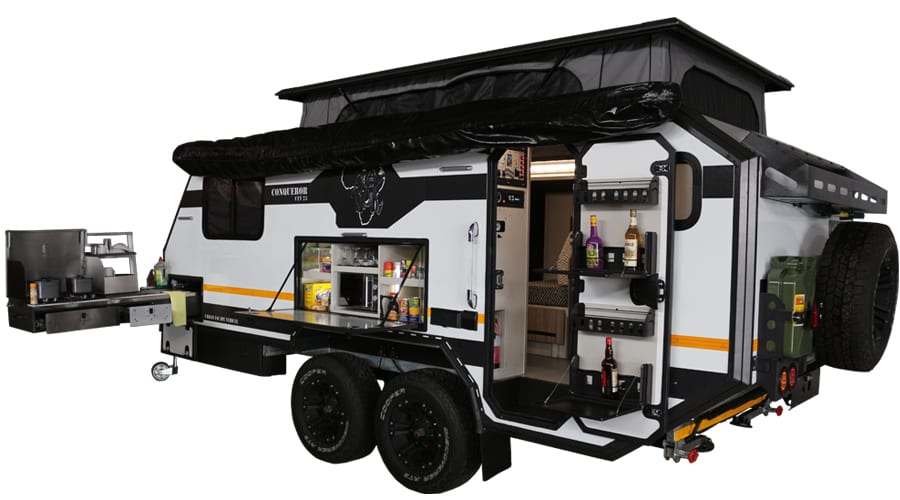

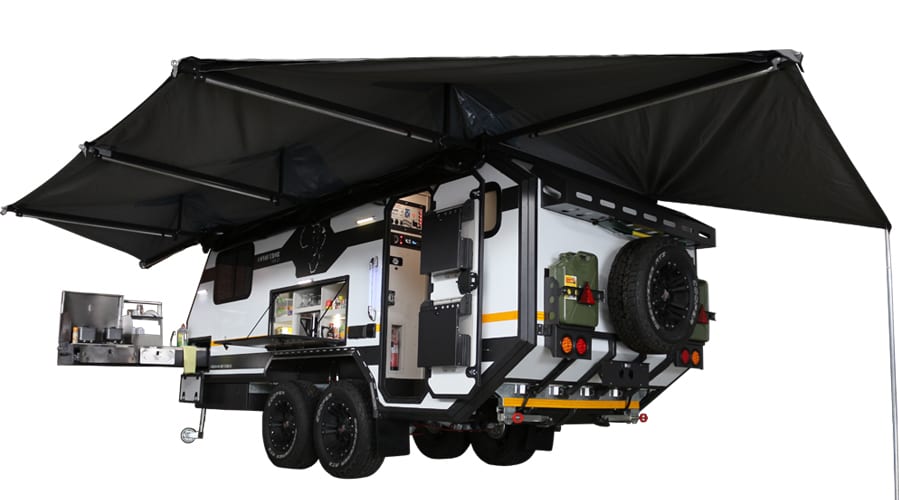

The UEV Range of campers currently offer a 270 deg Insta Awning which shades the rear and kitchen area and features a uniquely designed frame with integrated dropdown poles that sets up in just a few minutes. Its design does not require any additional support poles and is manufactured using the highest quality materials that will endure the harshest conditions.
UNIQUE FEATURES
- Independent D-Arm with Coil & Double Shock Absorbers.
- Double Axle.
- Unique design and building techniques.
- Dust Limiting cabin pressure fan.
- Ultra-lightweight construction materials.
- Large upright interior Fridge/Freezer.
- Front Island Double Bed.
Specifications
Exterior Length | 7290mm |
Exterior Width | 2042mm |
Exterior Height (Without Aircon) | 2380mm |
Track Width | 1740mm |
Suspension | Independent Coil Suspension (D-Arm) |
Tare | 1870kg |
GVM | 2200kg |
Water Capacity | 290 Litres |
AC Charger Output | 24A/14.7V (max) |
Occupant Capacity | 4 |
Side Bed Dimensions | 1931mm (L) x 1290mm(W) |
Front Island Bed Dimensions | 1950mm (L) x 1370mm (W) |
